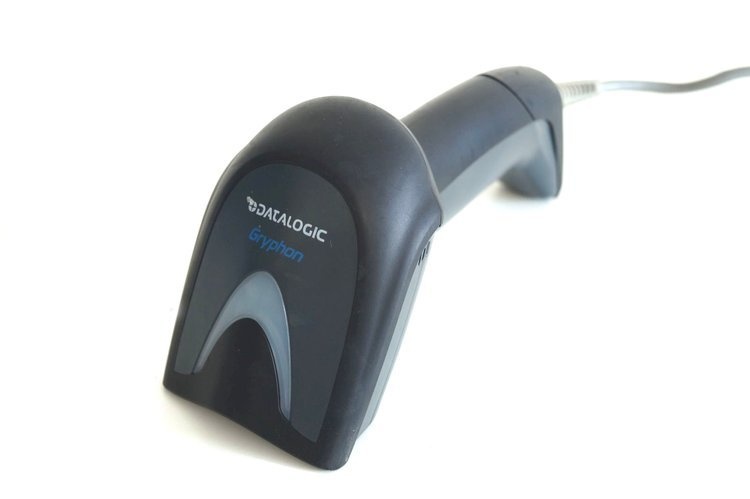

Datalogic GD4130-BK Barcode Scanner Overview
The Gryphon GD4130 reader's ability to capture bar codes from near contact to over 1.0 m / 3.9 ft increases productivity and improves ergonomics for users. A wide scan angle reads very wide codes and renewed decoding capabilities increase throughput on hard-to-read, poor or damaged codes. All of these features combined with low-resolution decoding for labels as small as 3 mils, establishes the Gryphon I GD4130 readers as high-performance products and powerful data capture solutions.
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
Postal Codes: China Post
1D / Linear Codes:
- Autodiscriminates All Standard 1D Codes
- GS1 Databar Linear Codes
Stacked Codes:
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
325 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
- 2.3" - 7"@5mil
- 1.4" - 11.7"@7.5mil
- 0.8" - 17.7"@10mil
- 1.2" - 23.4"@13mil
- 1.2" - 31.2"@20mil
Scan Pattern:
Linear
Scanning Distance:
23.60"
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
6 oz
Miscellaneous
Additional Information:
Supported Interfaces:
- IBM 46XX
- USB
- Keyboard Wedge
- Wand
USB Cable separate
Environmentally Friendly:
Yes
Item Numbers
GTIN: 0853585516646, 4923773180372, 5052461758681, 5711045205804
UPC: 682017490366, 783555042618, 853585516646
EAN: 0853585516646, 4923773180372, 5052461758681, 5711045205804
UNSPSC: 43211701
