Product Description
|
Product Name
|

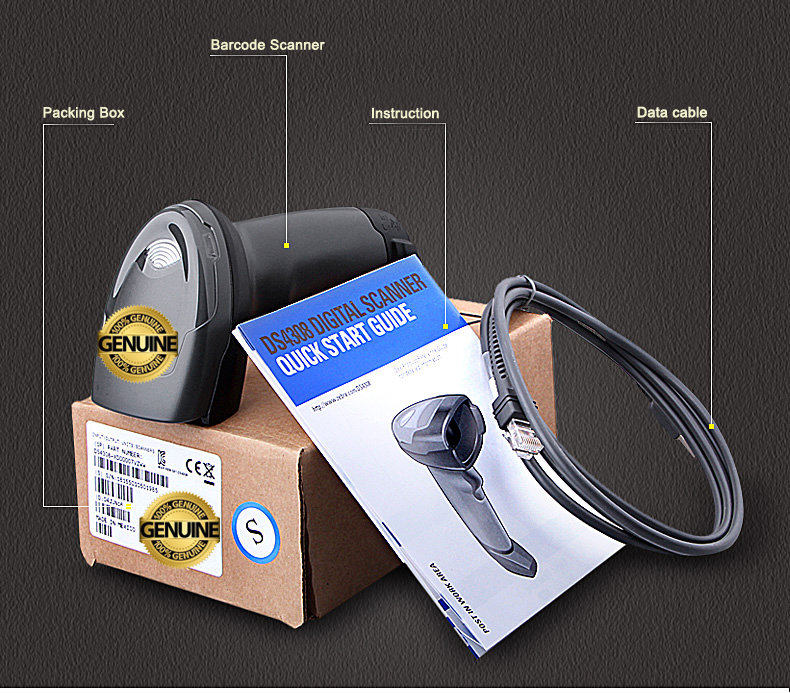

Genuine DS4308 SR 2D barcode scanner
|
|
|
Physical Characteristics
|
|
Dimensions
DS4308
DS4308P
|
8.15 in. H x 5.18 in. L x 3.74 in. W (20.7 cm H x 13.15 cm L x 9.5 cm W)
|
|
Weight (without cable) DS4308
DS4308P
|
5.71 oz. (162 g)
10.6 oz. (300 g)
|
|
Power
|
5 VDC +/- 10% @ 360 mA (RMS typical)
|
|
|
Performance Characteristics
|
|
Light Source
|
Aiming pattern: 617 nm LED
Illumination: 660 nm LEDs
|
|
Field of View
(Vertical x Horizontal)
|
|
|
Roll
Pitch
Yaw
|
0 - 360º
+/- 65º or greater
+/- 60º or greater
|
|
|
Symbology Decode Capability
|
|
1D
|
UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1-128, ISBT 128, ISBT
Concatenation, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, GS1 DataBar variants |
|
2D
|
PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, GS1 Data Matrix, Maxicode, QR Code, GS1 QR Code, MicroQR, Aztec, Han
Xin |
|
Postal
|
US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Royal Mail 4 State Customer, KIX Code (Dutch), UPU 4 State Postal
FICS (Post US4), USPS 4 State Postal (Post US3), Mailmark |
|
Motion Tolerances
|
Up to 30 in. (76.2) cm per second
|
|
|
Technical Specifications
|
|
Interfaces Supported
|
USB, RS-232, RS-485 (IBM 46xx), keyboard wedge, SSI The scanner supports the following protocols over USB: HID Keyboard (default
mode), SNAPI, COM Port Emulation, IBM SurePOS (Yellowstone) (IBM Hand-held, IBM Table-top, OPOS), USB CDC, SSI over USB CDC The scanner supports the following protocols over RS232: Standard, Wincor-Nixdorf, ICL, Fujitsu, Olivetti, Omron, CUTE |
|
Minimum Resolution
|
Standard Range (SR) Configuration
Code 39 4 mil
UPC 60% 7.8 mil
PDF417 5 mil
Data Matrix 7.5 mil
High Density (HD) Configuration
Code 39 3 mil
UPC 60% 7.8 mil
PDF417 4 mil
Data Matrix 5 mil
|
|
|
User Environment
|
|
Operating Temperature
|
32º F to 122º F (0º C to 50º C)
|
|
Storage Temperature
|
-40º F to 158º F (-40º C to 70º C)
|
|
Humidity
|
5% to 95%, non-condensing
|
|
Drop Specifications DS4308
DS4308P
|
Withstands multiple 5 ft. (1.5 m) drops to concrete.
|
|
Environmental Sealing
|
IP42
|
|
Ambient Light Immunity
|
Immune to normal indoor lighting up to 1600 Lux.
Immune to sunlight up to 86,000 Lux.
|
|
|
Accessories
|
|
DS4308 Hands-Free Option
|
Gooseneck Intellistand
|
|
DS4308P Mounting Option
|
Wall/table mount bracket
|
|
Power Supplies
|
Power supplies are available for applications that do not supply power over the host cable.
|
-
Introduction

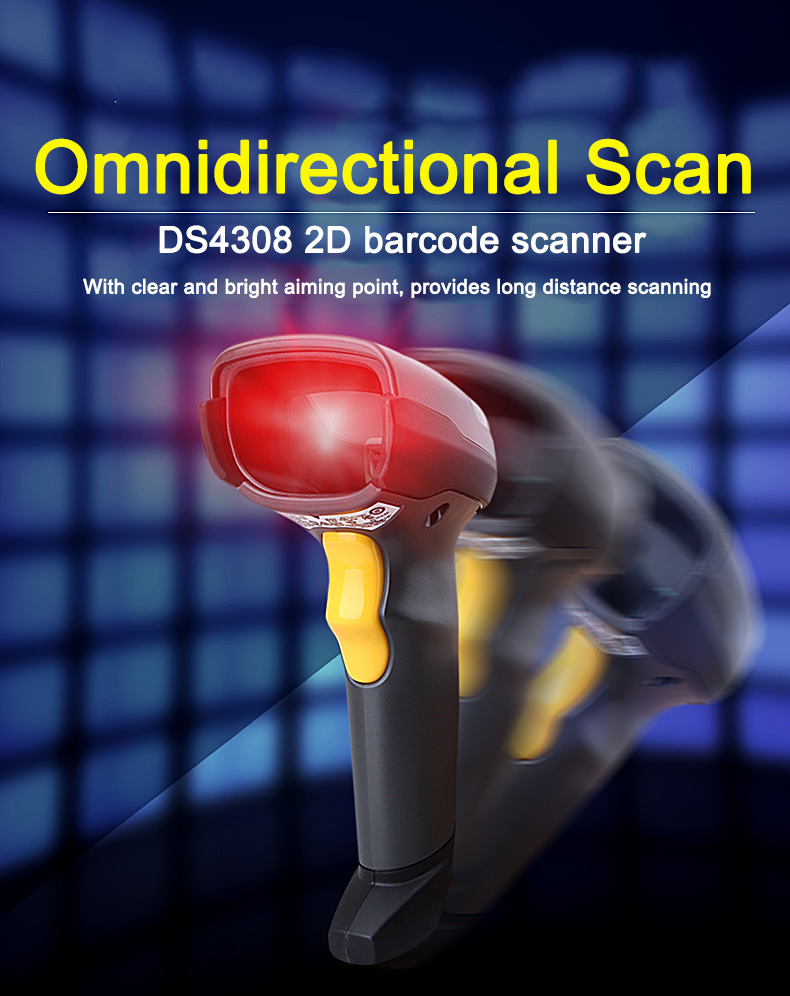

The DS4308 and DS4308P combine superior 1D and 2D omnidirectional bar code scanning and transfer with a light-weight,
hands-free/hand-held design. The digital scanner’s gooseneck Intellistand seamlessly accommodates both countertop and hand-held
use. Whether in hands-free (presentation) or hand-held mode, the digital scanner ensures comfort and ease of use for extended
periods of time.
hands-free/hand-held design. The digital scanner’s gooseneck Intellistand seamlessly accommodates both countertop and hand-held
use. Whether in hands-free (presentation) or hand-held mode, the digital scanner ensures comfort and ease of use for extended
periods of time.
