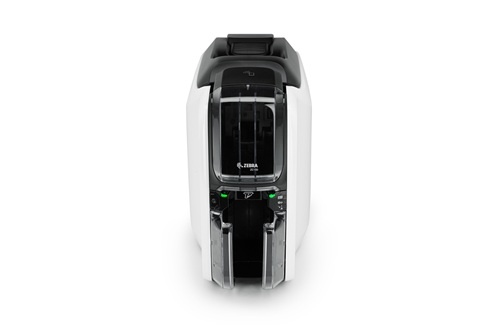

ZC100/ZC300 User Guide (en)

Standard Features

• 300 dpi (11.8 dots/mm) print resolution
• 2 GB flash memory
• Image size: 1006 x 640 pixels
• Auto calibration of ribbon
• USB 2.0 connectivity
• 100 card capacity auto-adjusting input hopper (30 mil)
• 100 card capacity output hopper (30 mil)
• Manual card feeding capability with LED bezel
• 3 Tricolor printer status indicator lights
• Kensington® secure lock slot
• Printer host authentication and data encryption
• Print Touch NFC tag and Quick Help QR code for online printer help and documentation access
• Three-year limited warranty on printer and printhead

Printing Specifications

	• Dye-sublimation thermal transfer direct to card print method • Full-color or monochrome printing • Single-sided printing • Edge-to-edge printing on standard CR-80 media Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.
YMCKO:	Single-Sided: 150 cph
Monochrome:	Single-Sided: 700 cph

Media Specifications

	Supplies Specifications: NOTE: The ZC100 printer is designed to work only with Zebra genuine ribbons. Ribbons are included in a simple-to-load cartridge.
Ribbon Description	Cartridge Image Count
YMCKO*	200
1/2 YMCKO*	400
Black Monochrome*	2000
Black Monochrome	1500
White Monochrome*	1500
White Monochrome	1500
Red Monochrome	1500
Blue Monochrome	1500
Gold Monochrome	1500
Silver Monochrome	1500
	*Zebra intelligent technology automatically detects and authenticates ribbon • Cleaning roller is included with each ribbon • Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)
	Card Compatibility: NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended. • Card Thickness: 10-40 mil* • Card Size: CR80 ISO 7810 ID-1 format, CR79* • Card Material: PVC and PVC composite • Adhesive back and writable back cards *Note: Spot color or monochrome printing recommended only on >20 mil thick cards and CR79 cards.

Operating Characteristics

Operating Temp.	59º F to 95º F/15º C to 35º C
Operating Humidity	20% to 80% non-condensing
Media Storage	— Temperature: 41º F to 77º F/5º C to 25º C — Humidity: 35% to 65% non-condensing
Electrical	• Auto-switching single-phase AC power • Operating range: 90-132VAC and 190-264VAC RMS • Frequency range: 47-63 Hz • FCC Class A

Physical Characteristics

Dimensions	10.2 in. H x 6.2 in. W x 15.1 in. D 258 mm H x 157 mm W x 383 mm D
Weight	8.6 lbs (3.9 kg)

Communications and Interface Capabilities

USB 2.0	Standard
Built-In 10/100 Ethernet	Optional
802.11ac	Optional

Encoding Options and Specifications

• Magnetic stripe encoder — ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; stripe down; 30 mil cards only) *
*Field upgradeable options
