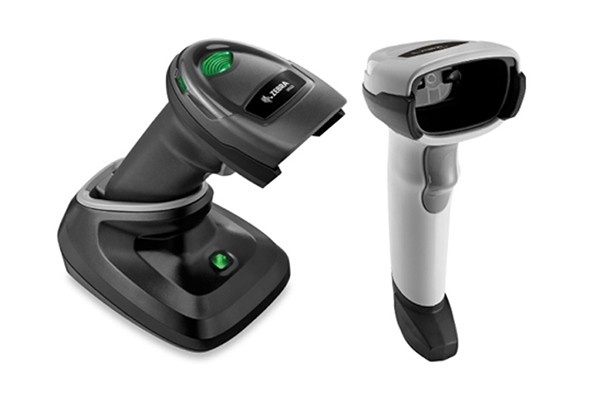

Zebra DS2278 HANDHELD IMAGERS BARCODE SCANNER

Products

Zebra DS2278 HANDHELD IMAGERS BARCODE SCANNER

Product No.:202381611431

  • Details

EASY TO USE

Instant decoding with PRZM intelligent imaging

Only from Zebra, PRZM’s software decode algorithms for the DS2200 Series deliver superior performance on poor quality barcodes. The result is first-time, every-time scanning to help your workers improve productivity at the checkout counter.

Unsurpassed scanning range

Workers can scan barcodes across a wide range (0.5 in./1.23 cm to 14.5 in./36.8 cm), improving checkout speed and reducing training time.

Point-and-shoot scanning simplicity

With omni-directional scanning, users never need to line up the imager and the barcode — unlike 1D scanners.

Patent pending technology for the most intuitive aiming

The aim line is similar to the 1D scanners you have today, providing your associates with a familiar experience. Additionally, the aim line guides users to scan at the ideal distance from the barcode — especially helpful when capturing wide barcodes.

Easiest pairing on the planet

With our industry-first Scan-to-Connect technology, your workers can pair the cordless DS2278 with any Bluetooth®-enabled PC, tablet or smartphone in a single step.

Fast, easy and flexible charging

Plug the imager directly into the host or any standard wall socket via the Micro USB cable to charge the DS2278 in just an hour without the cradle. The Presentation Cradle, which provides hands-free scanning, charges the DS2278 in just four hours. The Presentation Cradle charges the battery during use, so you can keep the scanner in service during charging. And since the Presentation Cradle doesn’t require a separate power supply, there are fewer accessories to purchase and manage.

Unique direct decode indicator improves productivity

The illumination on the barcode flashes to indicate a good decode, so workers know instantly if the barcode was captured correctly — regardless of how noisy the environment might be.

On-the-fly switching between handheld and hands-free scanning

Regardless of whether your workers are using the corded DS2208 or the cordless DS2278, workers can simply place the imager in its presentation stand to automatically switch to hands-free mode – no change of settings is required.

Guaranteed full shift battery power

With 14 hours of power, your cordless DS2278 imagers are always available for use — no need to waste time recharging during the business day.


EASY TO MANAGE

Control your scanners from a smartphone, tablet or PC

You can easily control the beeper, LED and Symbology settings; display scanned barcode data; access model and serial number information and more from Windows, Android and iOS hosts.

Eliminate Bluetooth interference with Zebra’s proprietary Wi-Fi friendly mode

Ensure that your cordless DS2278 Bluetooth imagers only operate on channels that are not shared with your WLAN, protecting WLAN service levels for your workers and your customers.

A battery designed to last

The long-lasting 2400 mAh Lithium Ion battery in the cordless DS2278 will likely never need to be replaced, reducing total cost of ownership and simplifying everyday management by eliminating the need to purchase and manage a battery pool.

No-cost tools to meet advanced management and application development needs

If you have Imagers in different locations, you can remotely manage them all with our Scanner Management Service (SMS) application. Need a custom scanning application? Our Scanner Software Development Kits (SDKs) provide everything you need, including documentation, drivers, test utilities and sample source code for Windows, Android, iOS and Linux.

DS2200 SERIES SPECIFICATIONS

Physical Characteristics

Dimensions Corded DS2208:
6.5 in. H x 2.6 in. W x 3.9 in. D
16.5 cm H x 6.6 cm W x 9.9 cm D
Cordless DS2278:
6.9 in. H x 2.6 in. W x 3.5 in. D
17.5 cm H x 6.6 cm W x 9.0 cm D
Presentation Cradle:
2.8 in. H x 3.7 in. W x 4.8 in. D
7.2 cm H x 9.4 cm W x 12.2 cm D
Weight Corded DS2208: 5.7 oz. / 161.6 g
Cordless DS2278: 7.5 oz. / 214 g
Presentation Cradle: 5.2 oz. / 151 g
Input Voltage Range DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
Current Corded DS2208 Operating Current at
Nominal Voltage (5.0V):
 250 mA (typical).
(Note: Auto-Aim and Illumination on Acquiring
Image)
Corded DS2208 Standby Current (idle) at
Nominal Voltage (5.0V):
 150 mA (typical).
(Note: Auto-Aim On)
Presentation Cradle and Micro USB Cable:
500 mA (typical) Standard USB; 1100 mA
(typical) BC 1.2 USB
Color Nova White, Twilight Black
Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM)
46XX over RS485
Keyboard Support Supports more than 90 international keyboards
User Indicators Direct Decode Indicator; good decode LEDs;
Rear view LEDs; beeper (adjustable tone and
volume)

Performance Characteristics

Motion Tolerance (Handheld) Up to 5 in./13 cm. per second for 13 mil UPC
Swipe Speed (Hands-Free) Up to 30.0 in./76.2 cm. per second for 13 mil UPC
Light Source Aiming Pattern: Linear 624nm Amber LED
Illumination (2) 645nm Super-Red LEDs
Imager Field of View 32.8° H x 24.8° V Nominal
Image Sensor 640 x 480 pixels
Minimum Print Contrast 25% minimum reflective difference
Skew/Pitch/Roll Tolerance +/- 65°; +/- 65°; 0-360°
Minimum Element Resolution Code 39 - 4.0 mil; Code 128 - 4.0 mil;
Data Matrix - 6.0 mil; QR Code - 6.7 mil

User Environment

Operating Temperature DS2208/DS2278 Imagers:
32.0° to 122.0° F/0.0° to 50.0° C
Presentation Cradle:
32.0° to 104.0° F/0.0° to 40.0° C
Storage Temperature -40.0° to 158.0° F/-40.0° to 70.0° C
Humidity 5% to 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Tumble Specification Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler1
Environmental Sealing IP52
Electrostatic Discharge (ESD) DS2208/DS2278 and CR2278 Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light Immunity 0 to 10,000 Foot Candles/0 to 107,600 Lux

Radio Specifications

Bluetooth Radio Standard Bluetooth Version 4.0 with BLE:
Direct line of sight in open air: Class 2: Minimum 30 ft. (10.0 m) and up to 300 ft. (100.0 m) when paired with CR2278 cradle. Environmental factors may impact results. Serial Port and HID Profiles; output power adjustable down from 2.0 dBm in 8 Steps

Battery

Battery Capacity/Battery Type 2,400 mAh Li-Ion Battery
Scans Per Battery Charge2 110,000 scans at 60 Scans per Minute or 50,000 scans at 10 Scans per Minute
Operating Time Per Full Charge2 84.0 Hours
Charge Time (from Empty) 14 Hour Shift Hours / Full Charge Hours
Standard USB 14 Hour Shift Hours: 4
Full Charge Hours: 17
BC1.2 USB 14 Hour Shift Hours: 1
Full Charge Hours: 5
External 5V Source 14 Hour Shift Hours: 1
Full Charge Hours: 5
Micro USB 14 Hour Shift Hours: 1
Full Charge Hours: 7
BC1.2 Micro USB 14 Hour Shift Hours: 1
Full Charge Hours: 4

Regulatory

Electrical Safety EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
Environmental

RoHS EN 50581

LED Safety IEC 62471
IT Emissions EN 55032 (Class B)
IT Immunity EN 55024
Harmonic Current Emissions EN 61000-3-2
Voltage Fluctuation and Flicker EN 61000-3-3
Radio Frequency Devices 47 CFR Part 15, Subpart B, Class B
Digital Appartus ICES-003 Issue 6, Class B

Cordless Accessories

CR2278 Presentation Cradle, Spare Battery, Micro USB Cable

Decode Capabilities3

Input Voltage Range DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC
Host Powered; 4.5 to 5.5 VDC External Power Supply
1D Code 39, Code 128, Code 93, Codabar/NW7,
Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes
